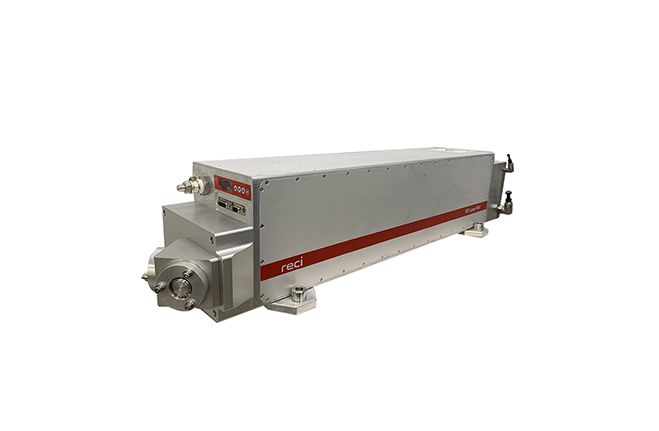

Radio Frequency Laser——R300
- Product Characteristics:
- 01 Good beam quality
02 High electro-optic conversion rate
03 Compact structure and long lifespan
04 The maximum output power can reach 350W
Inquiry Online
Message
DownloadProduct Description
Product Category: RF Laser
Description: Reci RF series laser is sealed-off, modulated-pulse CO₂ laser. They are mainly used for cutting non-metallic materials as well as cutting thin metal sheets. Under the condition of high pulse cutting, the thermal influence for non-metallic materials like leather is quite low, which stops the cutting edge from carbonization and keeps its original natural color.
Product parameters
|
Model |
R300 |
|
Wavelength(μm) |
10.6/9.3 |
|
Excited Frequency(MHz) |
81 |
|
Peak Power(W) |
600 |
|
Average Power(W) |
280 |
|
Max Average Power(W) |
350 |
|
Duty Cycle Range(%) |
4~40 |
|
Beam Quality Factor |
M²≤1.2 |
|
Beam Diameter(1/e²) |
7.5mm ± 0.5mm, at laser output optic |
|
Beam Divergence |
≤ 3mrad |
|
Beam Ellipticity |
< 1.2:1 |
|
Pointing Stability |
< 0.25mrad (Half angle) |
|
Polarsation |
Linear parallel to base |
|
Pulse Duration Range(μs) |
2~970 |
|
Repetition Rate Range(kHz) |
1~100 |
|
Power Instability(%) |
<±3.5 |
|
Lifespan(h) |
20000 |
|
Coolant Power(kW) |
＞7 |
|
Cooling Water Tube Diameter（mm） |
14 |

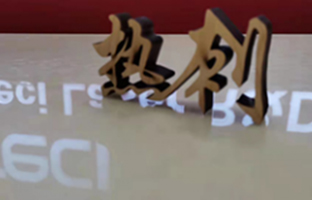

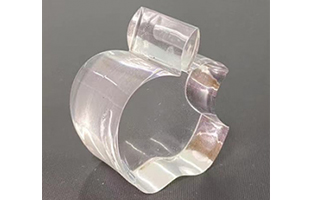

Products Applications
