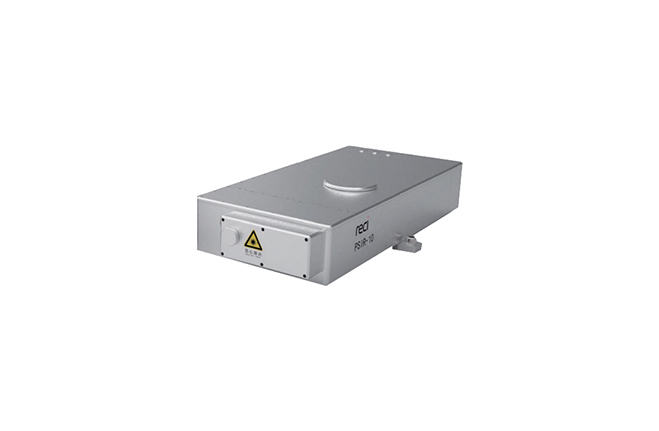

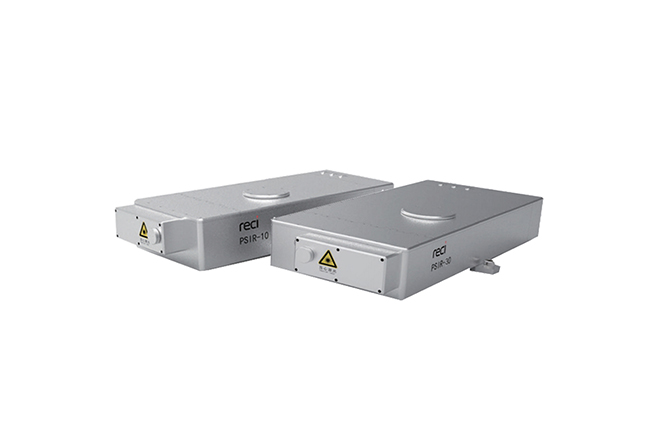

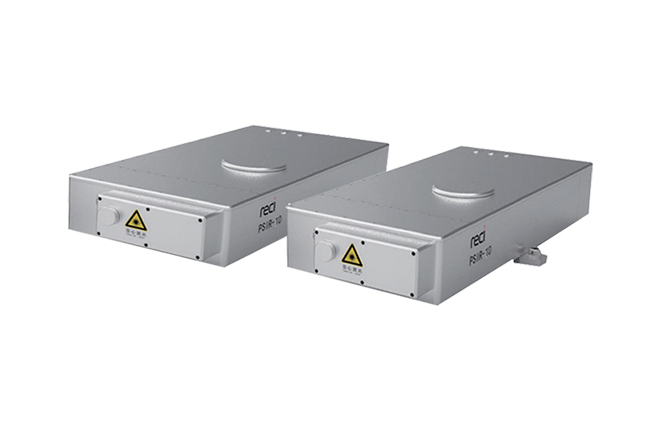

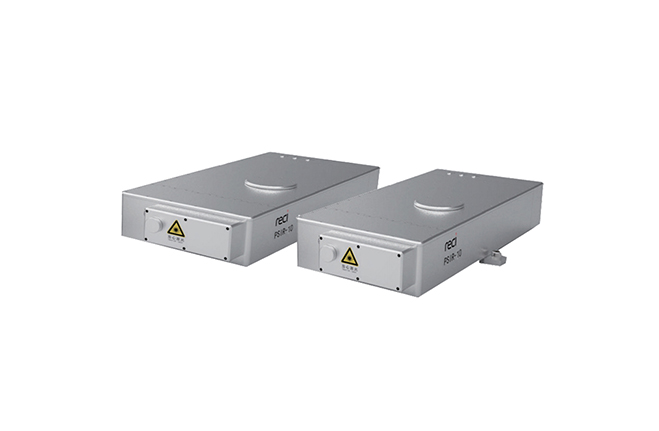

Picosecond Pulsed Laser——PSIR-10
- Product Characteristics:
- 01 High stability
02 Good beam quality: M2<1.3
03 Narrow pulse width <10ps
04 Fiber seed source + solid amplifier
Inquiry Online
Message
DownloadProduct Description
Product Category: Picosecond Pulsed Laser
Description: PSIR series picosecond-pulsed laser is developed and produced by Reci Laser. The high-average-power, high-pulse-energy and high-beam-quality picosecond-pulsed laser was achieved by employing a picosecond-pulsed fiber oscillator and multistage solid amplifiers in order to suppress the nonlinear effects of stimulated Raman scattering (SRS) and self-phase modulation (SPM) during ultrashort pulse laser amplification. In the full operating frequency range, the pulse duration is all less than 10 ps and the maximum average output power is over 75W. The special technology ensures the reliability of the laser long-term operation and realizes the 24-hour mode of long-term operation.
Product parameters
|
Model |
PSIR-10 |
|
Central Wavelength(nm) |
1064 |
|
Average Power(W) |
>10@500kHz |
|
Pulse Energy(μJ) |
>20@500kHz |
|
Repetition Rate(MHz) |
0.2~1 |
|
Pulse Duration(ps) |
<10 |
|
Power Instability(%) |
<2 |
|
Energy Instability(%) |
<2 |
|
Beam Quality ㎡ |
<1.3 |
|
Beam Divergence Angle(mrad) |
<3 |
|
Beam Diameter(mm) |
3 |
|
Beam Roundness(%) |
>85 |
|
Beam-pointing Stability(urad) |
<50 |
|
Polarization Extinction |
Vertical，>100:1 |
|
Operation Voltage(VAC) |
220 |
|
Power Consumplion(W) |
<1000 |
|
Warm-up time(min) |
<15 |
|
Cooling Method |
Water-cooling |
|
Ambient Temperature(℃) |
5~40 |
|
Ambient Humidity(%) |
<65 |
|
Cooling Water Temperature(℃) |
25 |
|
Dimensions L×W×H(mm3) |
644.5×260×133 |
|
Weight（kg） |
<25 |
