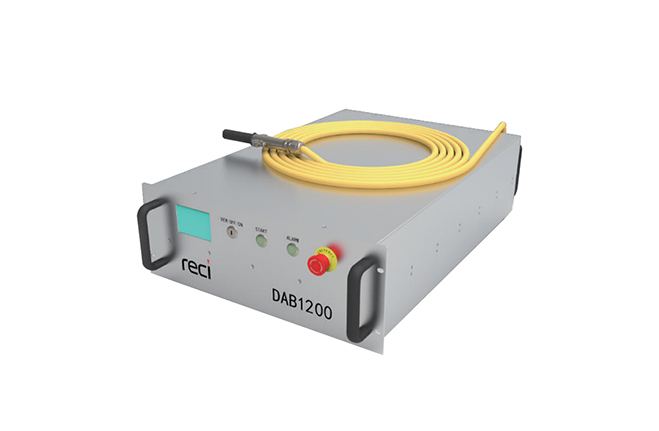

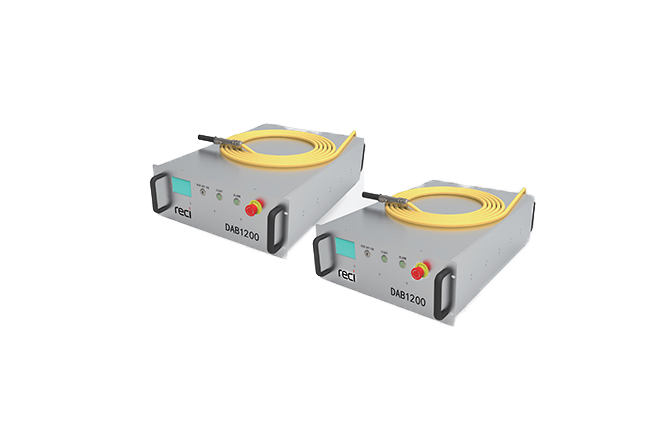

Air Cooled Direct Diode Laser 1200W
- Product Characteristics:
- 01 Portable to use
02 High electro-optic conversion efficiency
03 Low power consumption and failure rate
04 Internal integrated air-cooled components
Inquiry Online
Message
DownloadProduct Description
Product Category: Direct Diode Laser
Description: DAB series direct diode lasers are independently developed and produced by RECI laser. The air-cooled direct diode laser system integrates the photoelectric control. The core diameter of 200 μm NA0.22 optical fiber outputs power 1200W, which can be used in plastic welding, tin welding, and metal sheet welding, etc.
Product parameters
|
Model |
DAB1200 |
|
Output Power(W) |
1200 |
|
Wavelength(nm) |
915/975 |
|
Operating Mode |
CW/Modulate |
|
Max Modulation Frequency（kHz） |
50 |
|
Power Instability(%) |
< 3 |
|
Red Laser |
YES |
|
Beam Delivery Optics |
QBH |
|
Output Fiber Diameter(μm）/NA |
200/0.22 |
|
Delivery Fiber Length(m) |
10 /20(Customizable) |
|
Operating Voltage(VAC) |
220 |
|
Max Power Consumption(W) |
3000 |
|
Control Model |
Ext. RS232/Ext. AD/Hyper terminal |
|
Power Range(%) |
10~100 |
|
Ambient Temperature(℃) |
5~40 |
|
Ambient Humidity(％) |
<70 |
|
Cooling Temperature(℃) |
25±5 |
|
Coolant Flow(L/min) |
20 |
|
Size W*H*D（mm³） (with hand-piece) |
483×191×658 |
|
Weight（kg） |
<70 |
