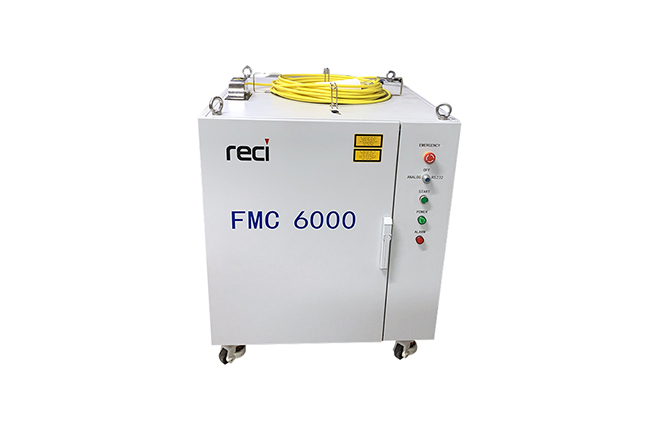

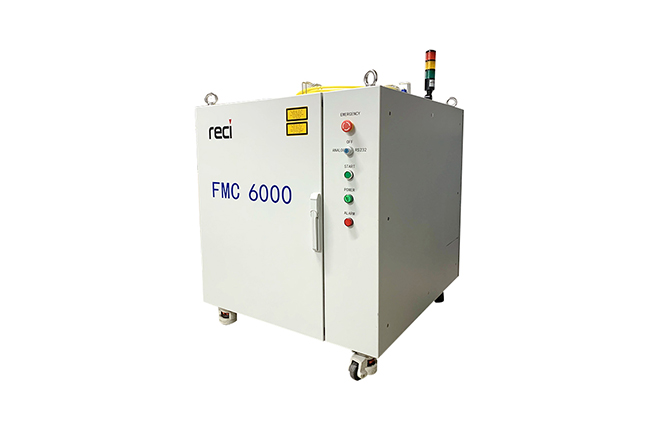

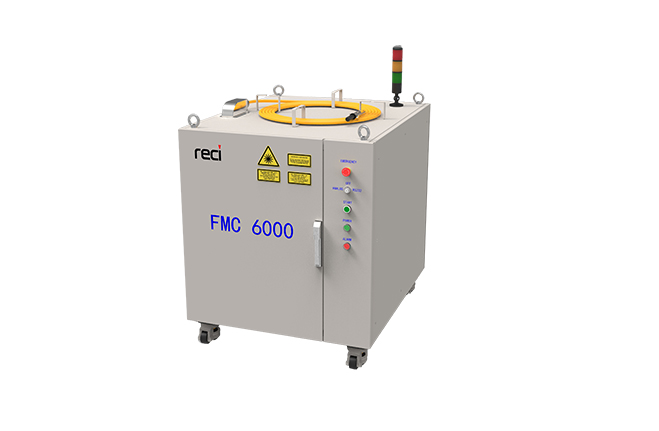

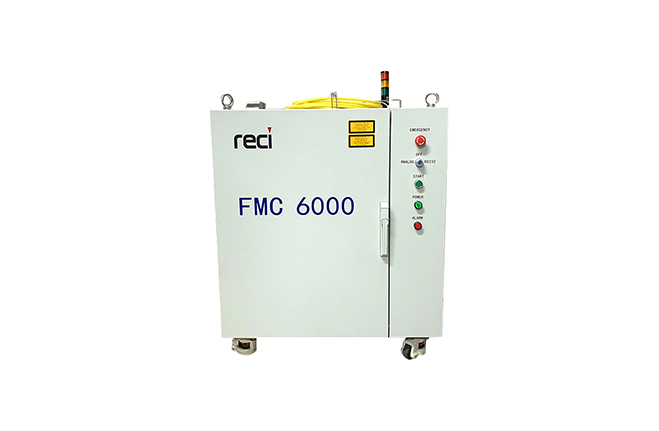

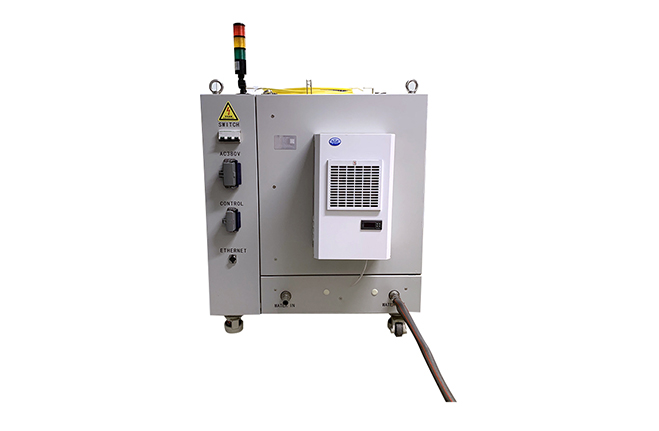

Multi Module Fiber Laser Source 6000W
- Product Characteristics:
- 01 High average power: up to 6,0000W
02 Good beam quality: M2= =1.3~7
03 The output fiber length is customizable
05 High electro-optic conversion efficiency: >33%
Inquiry Online
Message
DownloadProduct Description
Product Category: 6-30kw fiber laser
Description: FMC series high-power multimode continuous wave fiber laser is developed and produced by Reci Laser. The average output power exceeds 6000W, with modular design, high system integration, good environmental stability, long lifespan and maintenance-free operation. The series products can be widely used in metal cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, and high electro-optic conversion efficiency. Especially, the cutting speed is fast, and the slits are bright while cutting the thick metal plate, which has obvious advantages compared with other similar lasers on the market.
Product Parameters
|
Model |
FMC 6000 |
|
Output Power(W) |
6000 |
|
Central Wavelength(nm) |
1080±3 |
|
Operating Mode |
CW/Modulate |
|
Max Modulation Frequency（kHz） |
5 |
|
Power Instability(%) |
< 3 |
|
Red Laser |
Yes |
|
Beam Delivery Optics |
QBH |
|
Output Fiber Diameter(μm） |
100 |
|
Beam Quality BPP（mm*mrad） |
< 4 |
|
Delivery Fiber Length(m) |
20 |
|
Operating Voltage(VAC) |
380 |
|
Max Power Consumption(W) |
20000 |
|
Control Model |
Ext. RS232/Ext. AD |
|
Power Range(%) |
10~100 |
|
Ambient Temperature(℃) |
5~40 |
|
Ambient Humidity(％) |
<70 |
|
QBH Cooling Water Temperature(℃) |
Room temperature |
|
Cooling Temperature(℃) |
25 |
|
Size W*H*D（mm³） |
734×1296.5×770.5 |
|
Weight（kg） |
<400 |
