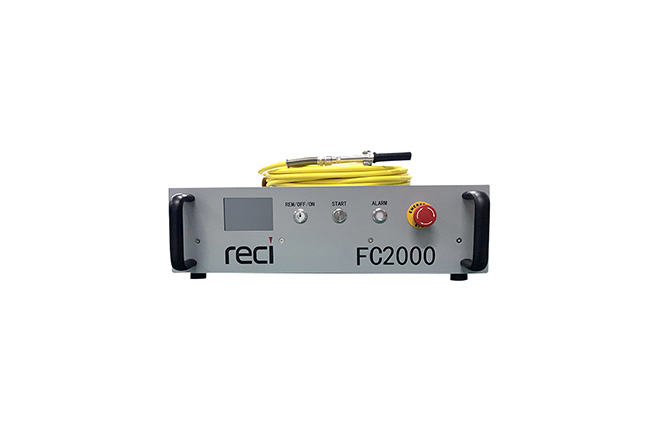

Single Module Fiber Laser Source 2000W

Product Characteristics:
01 High average power: up to 2000W
02 Good beam quality: M2= =1.3~7
03 The output fiber length is customizable
05 High electro-optic conversion efficiency: >33%

Product Description





Product Category: 1.5-12kw fiber laser

Description: FC series high-power single-mode continuous-wave fiber laser is developed and produced by Reci Laser. The average power exceeds 3000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.

Product Parameters

Model

FC 2000

Output Power(W)

≥2000

Central  Wavelength(nm)

1080±3

Operating Mode

CW/Modulate

Output Power Regulation Range(%)

10~100

Max Modulation Frequency(kHz)

20

Power Instability(%)

< 3

Indicated Red Light Power(mW)

>0.5

Beam Delivery Optics

QBH

Output Fiber Diameter(μm)

30/50

Delivery Fiber Length(m)

10 or 15

Operating Voltage(VAC)

AC 220V 50/60Hz

Max Power Consumption(W)

<7280

Control Model

Ext. AD/Loc. AD

Ambient Temperature(℃)

5~40

Ambient Humidity(%)

<70

QBH Cooling Water Temperature(℃)

Room temperature (No condensation)

Storage Temperature(℃)

-10~60

Cooling Temperature(℃)

25 (28 in summer)

Cooling Flow(L/min)

>20

Size W*H*D(mm³)

(with hand-piece)

483×125×506

Weight(kg)

<40
