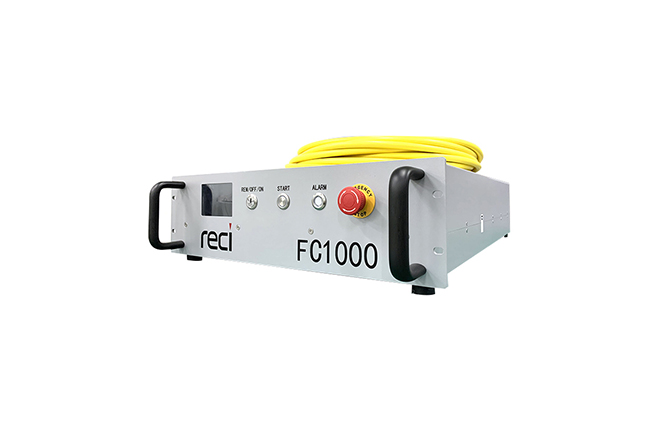

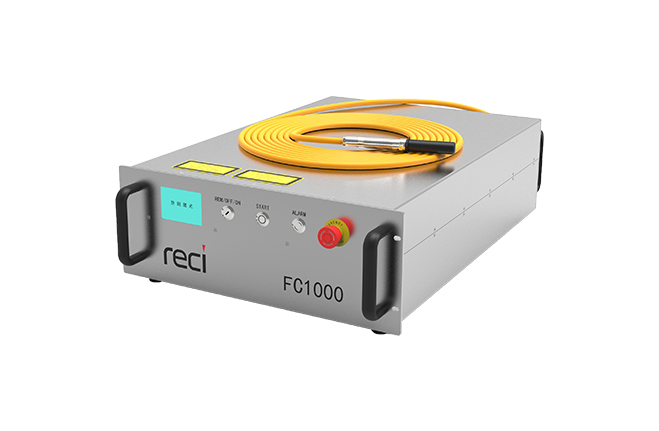

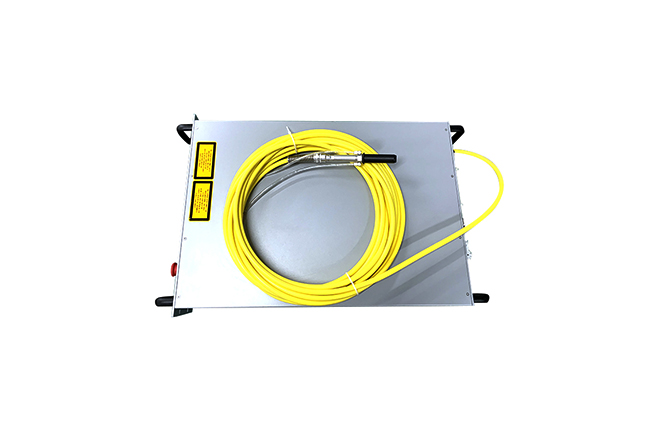

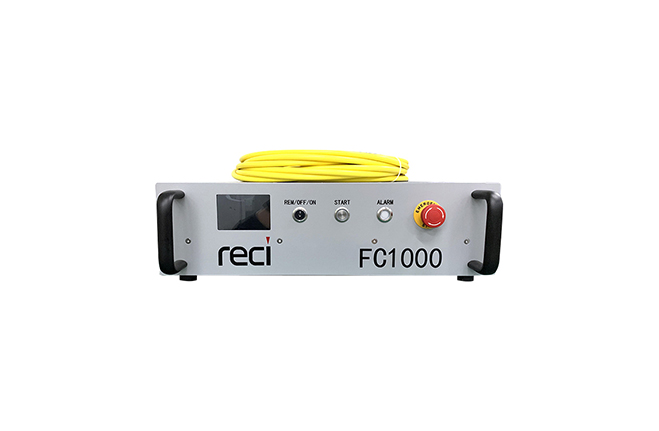

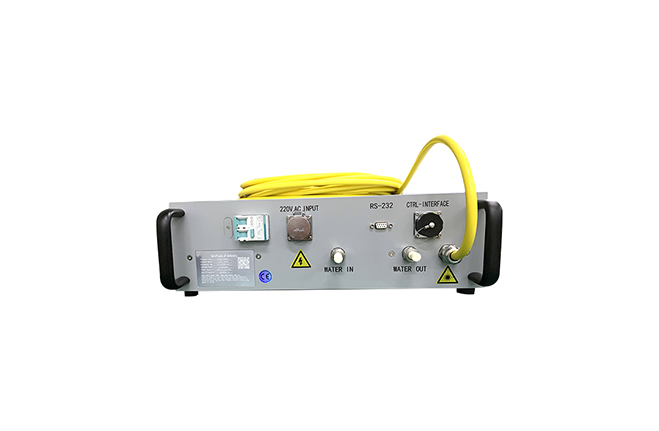

Single Module Fiber Laser Source 1000W
- Product Characteristics:
- 01 Sophisticated metal cutting
02 Industrial metal welding
03 Surface treatment: laser cleaning
04 Additive manufacturing field: 3D printing
Inquiry Online
Message
DownloadProduct Description
Product Category: 1-4kw fiber laser
Description: FC series high-power single-mode continuous-wave fiber laser is developed and produced by Reci Laser. The average power exceeds 1000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.
Product parameters
|
Model |
FC 1000 |
|
Output Power(W) |
≥1000 |
|
Central Wavelength(nm) |
1080±3 |
|
Operating Mode |
CW/Modulate |
|
Output Power Regulation Range(%) |
10~100 |
|
Max Modulation Frequency（kHz） |
20 |
|
Power Instability(%) |
< 3 |
|
Indicated Red Light Power(mW) |
＞0.5 |
|
Beam Delivery Optics |
QBH |
|
Output Fiber Diameter(μm） |
20/50 |
|
Delivery Fiber Length(m) |
10 or 15 |
|
Operating Voltage(VAC) |
220V±10%、50/60Hz |
|
Max Power Consumption(W) |
<3860 |
|
Control Model |
External/Local AD |
|
Ambient Temperature(℃) |
5~40 |
|
Ambient Humidity(％) |
<70 |
|
QBH Cooling Water Temperature(℃) |
Room temperature |
|
Storage Temperature(℃) |
-10~60 |
|
Cooling Temperature(℃) |
25(Summer 28) |
|
Cooling Flow(L/min) |
＞15 |
|
Size W*H*D（mm³） (with hand-piece) |
483×148×532 |
|
Weight（kg） |
<60 |
Products Applications
